Flow Rate Calculations for Low Loss Headers in Commercial Heating System

Accurate flow rate calculations for low loss headers in commercial heating systems improve efficiency, balance, and performance. Learn key methods and sizing tips.

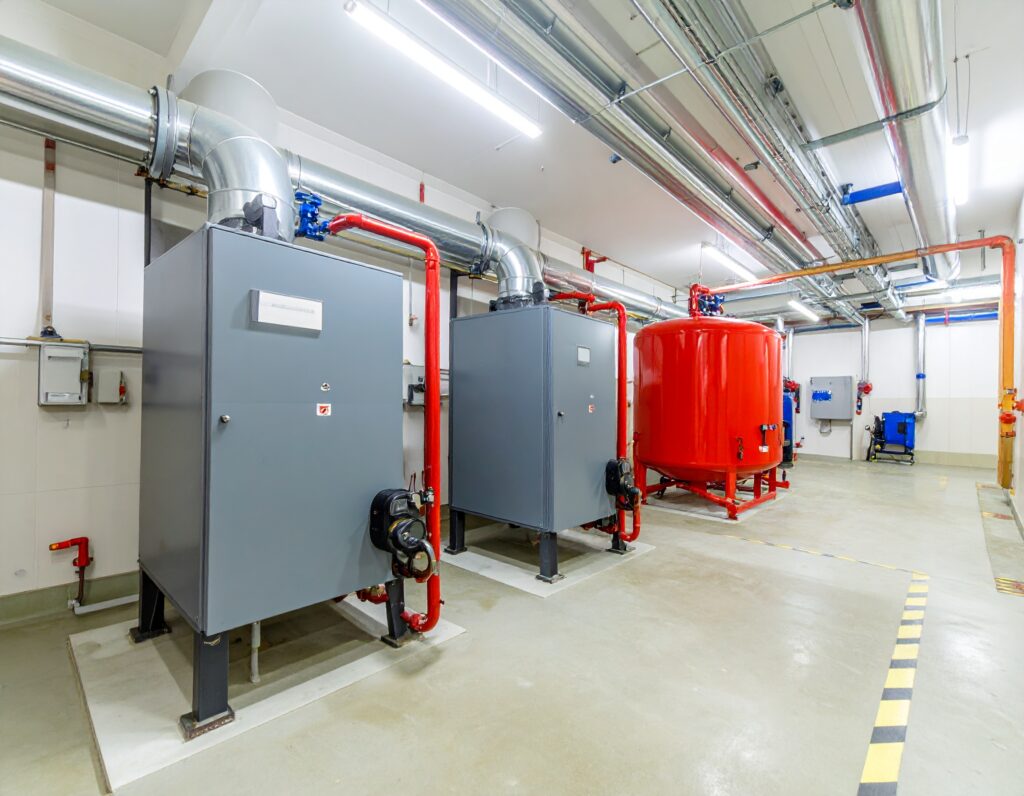

Low loss headers, also known as hydraulic separators, are critical components in many commercial heating systems. Their role is to decouple the primary circuit (connected to the heat source) from the secondary circuit (connected to the distribution system). This hydraulic separation helps maintain stable flow rates and temperature control, especially in systems using multiple boilers, variable speed pumps, or zoning.

In buildings with fluctuating heating demands, any imbalance between circuits can cause boiler short cycling, uneven heating, or pressure issues. Calculating the correct flow rate for the low loss header helps stabilise performance and reduce wear across the system.

Understanding Primary and Secondary Circuits in Commercial Systems

Before calculating the flow rate for a low loss header, it’s important to understand how the primary and secondary circuits interact.

• Primary circuit: This connects directly to the heat source (typically a commercial boiler or a cascade of units). Its job is to supply heated water into the system.



• Secondary circuit: This connects to the building’s distribution network—radiators, air handling units, underfloor heating, or fan coils. Its flow rate is often regulated by system demand, modulating valves, or BMS integration.



In an ideal scenario, the flow rates in both circuits match. But in real-world operation, they rarely do. The low loss header absorbs the difference. If the secondary flow exceeds the primary, the header draws residual water from its internal volume, slightly lowering output temperature. If the primary exceeds the secondary, the excess flow loops through the header, raising the return temperature to the boiler.

How Do You Calculate Flow Rate for a Low Loss Header

Flow rate in a low loss header is calculated using a basic heat transfer formula. The calculation helps engineers size the header correctly and select appropriate pump capacity.

The standard formula used in commercial heating systems is:

Flow rate (L/s) = Heat Output (kW) ÷ [4.18 × ΔT (°C)]

Where:

• 4.18 is the specific heat capacity of water in kJ/kg·K
• ΔT is the temperature difference between flow and return water
• kW is the system’s heating load or output

This formula gives the required flow rate in litres per second. It can be multiplied by 60 to convert to litres per minute if needed.

What Does Delta T Mean in Flow Rate Calculations

Delta T (ΔT) refers to the temperature drop between the flow and return pipes in a heating system. In commercial boilers, a typical ΔT value ranges from 11°C to 20°C, depending on system design. A higher delta T means lower flow is needed to deliver the same amount of heat. A smaller delta T increases required flow, which affects pump sizing and header design.

For example:

• If kW = 300
• ΔT = 20°C
• Flow rate = 300 ÷ (4.18 × 20) = 3.59 L/s

This means the system requires 3.59 litres of water per second through the low loss header to carry 300 kW of heat with a 20°C temperature drop.

Can You Use a Default Flow Rate Value in Commercial Systems

Not reliably. Using a default or estimated flow rate risks underperformance. System demands vary based on building type, zone distribution, control strategies, and seasonal conditions. Office buildings, schools, warehouses, and hospitals all operate with different return temperatures and peak loads.

In modern systems with variable speed pumps and BMS integration, flow rates change throughout the day. The low loss header must be sized based on the maximum required flow rate, not the average. This ensures consistent separation and avoids interference between primary and secondary circuits.

How Do You Size the Diameter of a Low Loss Header

Once the flow rate is calculated, the next step is selecting the correct pipe diameter for the low loss header. The goal is to maintain a low flow velocity through the header to support effective hydraulic separation.

In most commercial heating applications, the recommended flow velocity through a low loss header is between 0.1 m/s and 0.3 m/s. This slower velocity avoids pressure interference between the primary and secondary circuits and allows any entrained air or sludge to separate inside the header body.

To calculate the required internal diameter (ID) of the header pipe, use the formula:

ID = √[(4 × flow rate) ÷ (π × velocity)]

You’ll need the flow rate in m³/s and your chosen design velocity in m/s. The result will be in metres, which can be converted to mm for pipe selection.

Why Is Flow Velocity Important in Low Loss Header Design

Flow velocity directly impacts how well the header performs its job. If velocity is too high, hydraulic separation fails. The primary and secondary pumps will begin to interfere with each other, creating unstable temperatures, short cycling, and pressure fluctuations.

On the other hand, if velocity is too low, the header may become oversized and inefficient. Large volumes of water will move slowly through the system, reducing temperature responsiveness and increasing installation footprint.

Designing for optimal flow velocity keeps the system compact, responsive, and balanced under variable demand conditions.

Are There Standard Pipe Sizes for Commercial Headers

Commercial low loss headers are typically built using standard nominal pipe sizes, such as DN65, DN80, DN100, or larger depending on the required flow rate. Manufacturers often provide charts or selection tools that correlate pipe size to flow rate and velocity range.

For example:

• A flow rate of 3.5 L/s at 0.2 m/s velocity would require an internal diameter of roughly 150 mm.
• A flow rate of 1.5 L/s at the same velocity would suit a 100 mm header.

It’s important to consider internal roughness, insulation clearance, and fabrication tolerances when finalising the pipe size.

What Are Common Design Errors in Low Loss Header Sizing

One of the most common mistakes is using an assumed flow rate without calculating based on load and delta T. Oversizing the header leads to excessive volume and delayed response times. Undersizing causes turbulence, poor separation, and erratic flow between circuits.

Another issue is mismatching the header size with pump capacity. If the header is too restrictive, pressure drop increases and flow balancing becomes difficult. Incorrect velocity assumptions can also lead to headers that don’t provide effective thermal buffering or air separation.

Ignoring variable load conditions is also a risk. Systems with modulating boilers or VSD pumps require flow rate calculations based on maximum demand, not average use. Basing calculations on partial load figures results in headers that underperform during peak operation.

What Is a Real-World Example of Flow Rate and Header Sizing

A commercial office building with a heating load of 500 kW and a design ΔT of 15°C would require:

Flow rate = 500 ÷ (4.18 × 15) = 7.97 L/s

To achieve a velocity of 0.25 m/s, the internal diameter would be:

ID = √[(4 × 0.00797 m³/s) ÷ (π × 0.25)] ≈ 0.201 m (201 mm)

This corresponds to a nominal header size of DN200. If the designer mistakenly selected DN100 based on pipe availability, the velocity would exceed recommended limits and disrupt separation.

What Are the Best Practices for Flow Rate Calculations in Low Loss Headers

• Always start with an accurate kW load and intended ΔT
• Use consistent units and verify conversions between L/s and m³/s
• Select header diameter based on flow rate and velocity target
• Factor in variable flow conditions for systems with modulation
• Validate design choices using manufacturer sizing charts when available
• Include inspection ports or air separation features if required
• Avoid relying on default or “rule-of-thumb” sizing methods

Each system is unique. Precision in design ensures that low loss headers perform correctly under full load and partial load conditions.

Explore our Services here:

• Commercial Gas Boiler Services
• BMS Services
• Commercial Boiler Pump Services
• Gas Purging Services
• Commercial Kitchen and Gas Catering Engineers
• Water Booster Pump Services
• Pressure Testing Services
• Gas Safety Certificate CP42

Correct flow rate calculations in low loss headers are critical for keeping commercial heating systems balanced and efficient. They help maintain hydraulic separation, avoid short cycling, and reduce strain on pumps and heat exchangers. By getting the numbers right from the start based on actual load, temperature differentials, and system design, you set the foundation for reliable, cost-effective performance. It’s a detail that’s easy to overlook but hard to fix later.
